Blue Sea 187-Series Surface Mount Circuit Breaker - Sizes 25-200A

€111.00 - €157.95

Description

Bluesea 187-Series Circuit Breakers combine switching and circuit protection into a single device. Available in amperages 25-200A.

Features

  • Combines switching and circuit protection into a single device*
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large Clearance around terminal studs accept heavy gauge wire lugs
  • Robust 5/16 M8 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • * Do not use as a switch where high inrush currents are expected

Specifications

  • Amperage: See above
  • Maximum Voltage: 48V DC
  • Mounting: Surface Mount
  • Circuit Breaker Type: Thermally responsive Bi-metal blade
  • Terminal Stud Torque: 75 in-lb (8.47 Nm)
  • Interrupt Capacity: 5000A @ 14VDC, 3000A @ 28VDC, 1500A @ 48VDC
  • Minimum Operating Temperature: -40° C
  • Maximum Operating Temperature: 85° C
  • Case Material: Thermoset Polyester
  • Circuit Breaker Class: Type III - switchable/manual reset - trip free
  • Mounting Hole: Accept #10 (M5) Screw
  • Terminal Stud Size: 5/16" - 18
  • Weight: 0.5lb (0.23 kg)
  • Weight: 0.50lb (0.23 kg)

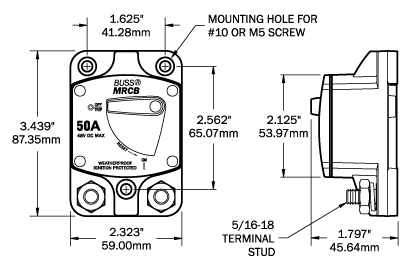

Dimension
