B&G
B&G WS320 Wireless Wind Sensor with Base Receiver /Interface
- SKU:
- NAV-000-14383-001
- UPC:
- 9420024171424
Description
The B&G WS320 wireless wind sensor is the perfect solution for any sailor looking to get accurate and fast wind data to your instruments, which is easy to install, and without cables.
This Kit includes the B&G S320 Wireless Interface,NAV-000-14388-001,which allows connection to your NMEA 2000® network
Designed to provide highly accurate wind data in all conditions at all points of sail and heel. WS320 has been benchmarked against multiple sensors in over 500 individual wind tunnel tests. Easy to install and light-weight, ideal for smaller boats – without compromising performance for wireless convenience. WS320 has the same accuracy (both wind angle and wind speed) as the wired version, while outputting wind at a super smooth 5 times every second.
As the most exposed sensor on a yacht, the wind sensor – critical for instruments and autopilot steering – must meet an exceptionally high standard. In addition to B&G’s standard testing WS320 sensors have been subject to combined field tests of over 200,000 hours.
Features
- Includes S320 Wireless Interface allows connection to your NMEA 2000® network
- Easy installation
- Smart rechargeable power management
- Superior data accuracy and aerodynamics
- Sensor quality and reliability
SOLAR Charged
Integrated solar panel
Specification
- Connectivity : Bluetooth 4.0
- Approvals: Compliance to IEC/EN 60945
- Electrical Supply Voltage: Internal Battery
- Environment : Operating Temperature Range-15°C to +55°C (5°F to 131°F)
- Storage Temperature Range n: -20°C to +60°C (4°F to 140°F)
- Waterproof rating: IPX6 (spray), IPX7 (immersion)
Dimensions
- Dimensions :W 500 x H 330 x D50mm (20 x 13 x 2")
- Weight: 0.33 Kg (0.7 lbs)

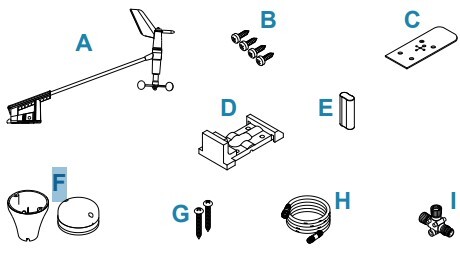

In the Box
A. WS320 wind sensor
B. 4 x Screws No.10 x 5/8
C. Gasket
D. Masthead bracket
E. Battery
F. Bluetooth base station with mounting accessories
G. 2 x Screw M4 30 mm SS316
H. NMEA 2000 drop cable
I. Micro-C T-Joiner
Warranty Period
