Description

Description

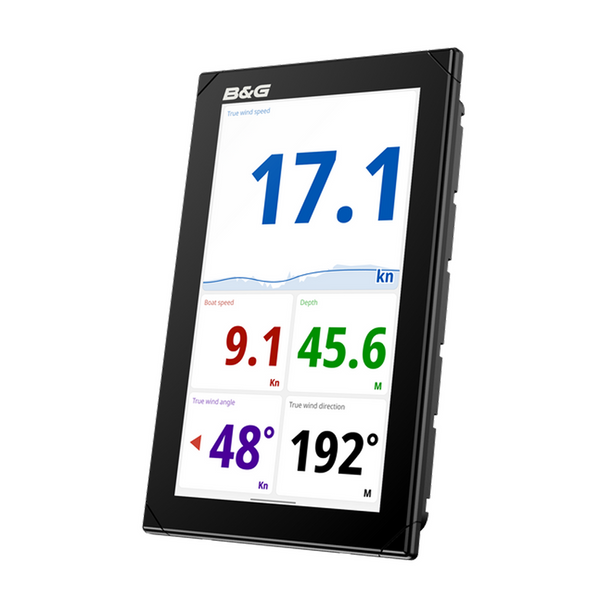

Nemesis™ 9 is the perfect solution for displaying all the crucial sailing data you need, on the mast or at the helm. The super bright touch screen provides outstanding visibility, from anywhere on the boat, in all conditions. Completely customisable; choose from pre-set templates, set up automatic point of sail dashboards or entirely create your own. You can view your trusted sailing data in precisely the way you want to, ensuring you get the most accurate data right in front of you, all the time.

The Intelligent Sailing Display

This intelligent sailing display offers unparalleled visibility from all angles and distances on-board, and with complete data customisation or a choice of easy to use multi-function templates and automatic dashboards based on your point of sail, whether racing or cruising, you will never be out of touch. The Nemesis display allows you to define what data you see, when and how you see it, no matter what the conditions, providing an intuitive link between your trusted instrument network and the real world.

Visibility & Versitility

A bright touch screen, with super-wide viewing angles and the ability to view with polarised sunglasses from anywhere on-board. With adjustable data sizes, palettes and backlighting, this display offers optimal viewing in all conditions, whether on the mast or in the cockpit.

Complete Customisation

This all-in-one customisable display can be mounted in either portrait or landscape. The easy to use drag & drop editor provides a wide choice of graphical gauges, SailSteer™, tank levels, digital data, IP camera views, histograms and images. With this, you have the freedom to select the data, visualisation and set size and position that you want; or you can simply choose from a choice of pre-selected built-in B&G dashboards and templates.

Additional automatic context modes allow you to choose the sailing data you want to display based on your point of sail or sailing mode: Upwind, Reaching, Downwind, Pre-start or Motoring.

Integration & Control

The use of commercial grade components, hours of testing and development by sailors in all conditions, combined with the most accurate sailing data available from your B&G network and instruments, will ensure you have complete trust in Nemesis. The reliability and accuracy of both the data and the display will give you the confidence you need to make the right decisions. Control your display on the touch screen or via an Apple Watch^® - compatible with Apple Watch Series 3 and above.

Specifications

Display

Display Resolution : 1280 x 720

Screen Brightness : 1300 nits

Viewing Angles : 80 top/bottom, +/ 80 left/right

Connectivity

Ethernet Ports : 1 x 100 Mbit

Connectivity Wi Fi : 802.11 b/g

NMEA 2000 Connectivity : 1 x NMEA 2000 Micro-C port, 1 LEN

Electrical

Power Consumption max : 13W

Recommended Fuse Rating : 2 Amp

Supply Voltage : 10 - 32 V DC

Environment

Operating Temperature Range : -15ºC to +55ºC (-5ºF to 131ºF)

Storage Temperature Range : -20ºC to +60ºC (-4ºF to 140ºF)

Waterproof rating : IP67

Physical

Compass Safe : 300mm (12")

Dimensions W x H x D : 239 x 149 x 69mm (9.4 x 5.6 x 2.7")

Mounting Type : Flush, Panel

Other

Interface : Touch Screen

Languages : Chinese, Dutch, English, Finnish, French, German, Italian, Norwegian, Portuguese, Spanish, Swedish

Warranty Period : 2 years
