Aqua Signal Floodlight 500 W

Certificates

1. 1. Marine ApprovedYes

Technical Data

1. 1. Minimum ambient temperature (ºC)-40
   2. Maximum ambient temperature (°C)45
   3. IP classification67

Light Technical Data

1. 1. Light sourceHalogen
   2. Number of lamps1
   3. Power consumption light source (W)500
   4. Lamp baseR7s
   5. Light source includedNo

Electrical Data

1. 1. Minimum Voltage -10% (VAC)220
   2. Maximum voltage +10% (VAC)240
   3. Minimum frequency -5% (Hz)50
   4. Maximum frequency +5% (Hz)60

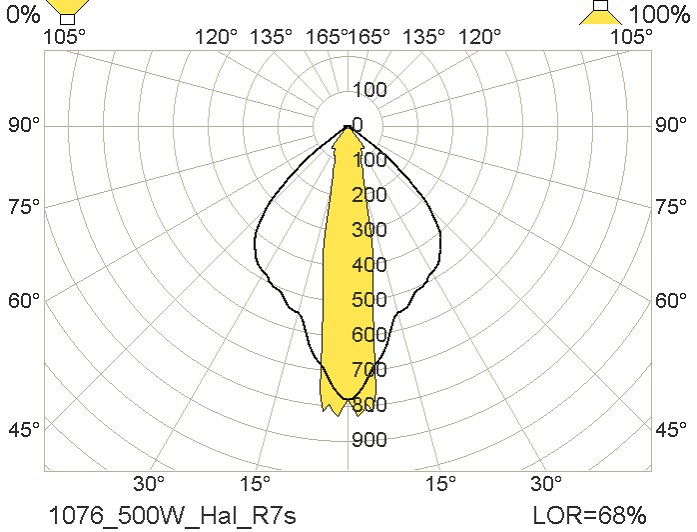

Optic

1. 1. OpticNB - Narrow beam
   2. Material of diffuserTempered glass
   3. Colour of reflectorSilver
   4. Material of reflectorAluminium

Housing

1. 1. Main body materialStainless steel
   2. Main Body MaterialTextAcid-proof stainless steel 316L
   3. Body colourWhite
   4. Main body colour nameTraffic white
   5. Main body colour surfacePowder coated
   6. Main body colour RAL codeRAL 9016
   7. Mounting bracket materialStainless steel

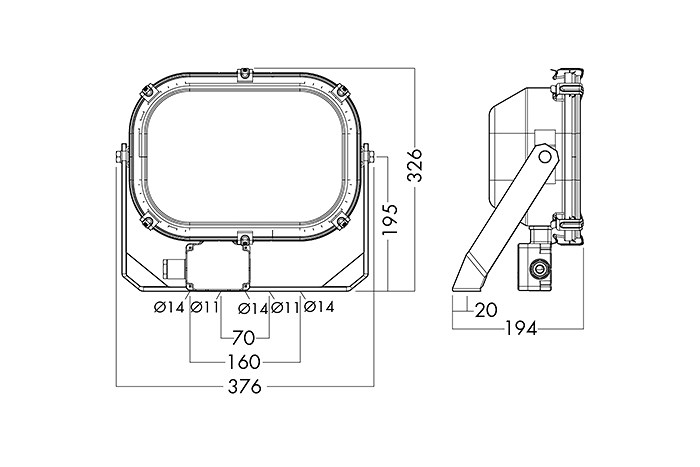

Dimensions

1. 1. Length (mm)374
   2. Width (mm)194
   3. Height (mm)326
   4. Net weight (kg)4.47

Cable Inlet

1. 1. Cable glandM24-Brass
   2. Number of cable glands1
   3. Max cable diameter (mm)12
   4. Min cable diameter (mm)10

Logistic Data

1. 1. Item gross weight (kg)4.86
