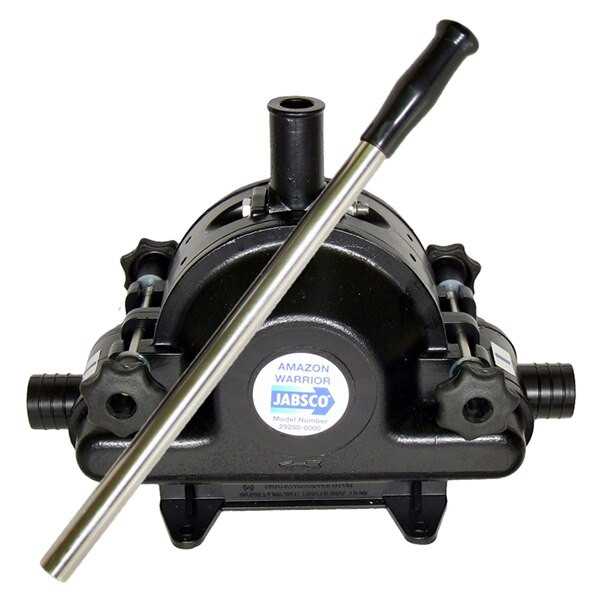

Jabsco Amazon Warrior Pump with Detachable Handle - 135LPM

SKU:: J29280-0000
UPC:: 671880023023
MPN:

€686.95

Current Stock: 9

Quantity:

Description

Description

Jabsco Amazon Warrior pump with 38mm hose outlet. The Jabsco Amazon Warrior bulkhead/deck mounted manual pump has a flow rate up to 135 LPM with ports to suit 38 mm ID hose.

Made from robust alloy and featuring twin diaphragms the Jabsco Amazon Warrior manual pump has a 450 mm handle for easy pumping whether mounted on or through the deck.

Features

Stainless steel handle with bulkhead clips
Mounts on deck, or through deck (optional kit and bracket)
Corrosion-resistant materials throughout
Can function on one diaphragm in an emergency
Double diaphragm design for maximum efficiency and added safety each side of the pump can work independently

Specifications

Flow output: 35 GPM (135 LPM)
Self-priming: Up to 17.5' (5.5 m)
Connection ID hose: 1 1/2" (38 mm)
Height: 9 1/2" (24 cm)
Width: 14" (35.5 cm)
Depth: 8" (20 cm)
Weight: 11 lb (4.95 kg)

Spare Parts and Accessories

Through deck kit
Under deck bracket
In-line non-return valve
Service kit (includes diaphragm, valves)
Strum Box strainer

29280-0000 Warrior Service Parts

Key	Description	Model Number	A	B	C
1	Left Hand Cover Plate	29281-1000
2	Bolt (Diaphragm Plate)				2
3	Washer		1		2
4	Diaphragm Plate				4
5	Rocker Arm				1
L	102-106/40.16-41.73
6	Bushing				2
7	Pivot Pin				1
8	Body			1
9	Bolt (Rocker Assembly)				1
10	Connecting Rod				1
11	Diaphragm		2
12	Right Hand Cover Plate	29282-1000
13	Knob & Washer Assembly	29288-1000
14	Washer (Stud)		2
15	Long Stud			2
16	Roll Pin			2
17	Handle	29287-1000
18	Nut (Rocker Assembly)				1
19	Screw
20	Nut
21	Nut	29289-0000
22	Bolt
23	Underdeck Bracket
24	Through Deck Kit	29279-0000
