Blue Sea Common BusBar with Cover - 20 Gang - 150A

Features

• The industry standard busbar for positive distribution
• The industry standard busbar for the collection of negative or AC ground circuits

Specifications

• Base material: UL 94-V0 rated, glass reinforced thermoplastics
• Bus material: Tin-Plated copper CDA 110/UNS11000
• Cover material: Clear polycarbonate
• Maximum voltage: 300 V AC/48 V DC
• Number of terminal stud: 2
• Number of screw terminal: 20
• Terminal type: 1/4" stud, #8-32 screw
• Continuous rating: 130 A AC/150 A DC
• Screw terminal torque: 1.69 N-m (15 inch-lb)
• Stud torque: 6.78 N-m (60 inch-lb)
• Weight: 0.26 kg (0.57 lb)
• Certification: CE

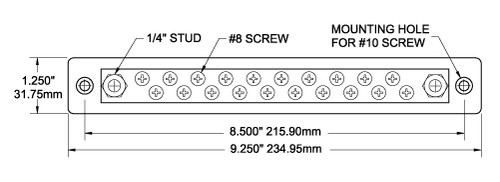

Dimension Drawing
