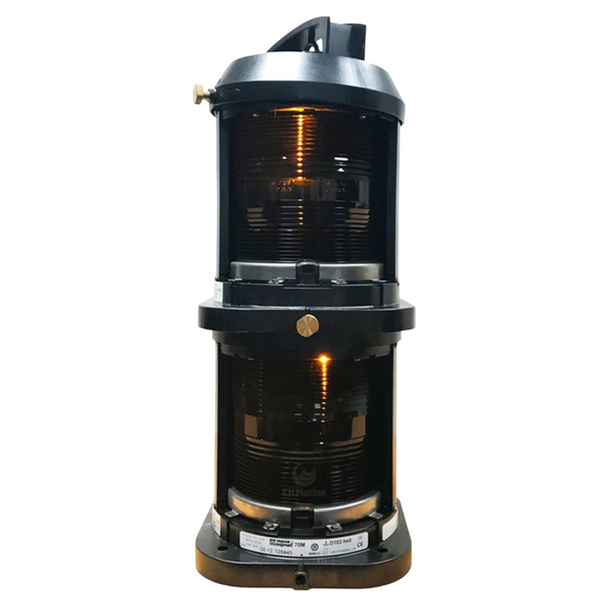

Aqua Signal Series 70M Double Yellow Stern Towing Navigation Light

The Aquasignal Series 70 Double YELLOW TOWING Navigation Light is applicable for all vessels ≥ 20 m in length  ( Note images does not show correct colour)

These Navigation lights fulfil all requirements of International Regulations for Preventing Collisions at Sea 1972 (COLREG) are published by the International Maritime Organization (IMO) and local rules.

Aquasignal's high quality,Series 70 range are virtually unbreakable and extremely reliable. The nonmagnetic and seawater resistant polycarbonate housings are self-ventilated and the special tungsten bulb can be changed easily changed.

Accepts Lamps type P28S  24 -230v - Not included

Technical Data

• Visibility (nm):   3nm
• Angle of visibility (°): 225 Masthead
• IP classification: IP56
• Minimum ambient temperature (ºC): -45
• Maximum ambient temperature (°C):  45
• Minimum Voltage -10% (V) 24v
• Maximum voltage +10% (V) 230v

Lamp Data

• Lamp Type Fitting: P28s ( Not Included)
• Volatage 24-230v
• Number of lamps:  2

Cable Input

• Type of cable gland : M24-Polyamide
• Number of cable glands: 1
• Cable length (m): 1.5m

Dimension

• Net weight (kg): 4.8
• Gross weight (kg):5.0
• Length (mm):     220
• Width (mm):       220
• Height (mm):      550

Body & Lens Materials

• Body Material: PC Glass Fribre Reinforced
• Color of body: Back
• Optic:  Double Yellow lens
• Material of diffuser: Acrylic

Approvals
